Prefabricated warehouse & Farm
Prefabricated warehouse & Farm light steel structure cow farm building for agriculture
What is a Light steel structure prefabricated Farm? prefab farms are flexible and self-contained systems that allow you to grow herbs,vegetables and breeding chickens, cattle and sheep, etc.without the need for soil or sunlight. Modular farming is becoming more than just a sustainability goal for social impact organizations. It is also becoming a big business.Fast installation, long life time, fast delivery.
Product details
Specification
|
Main Steel Frame
|
Column&Beam
|
Q235,Q345 Welded H Section Steel
|
|
|
Secondary Frame |
Purlin
|
Q235 C&Z purlin
|
|
|
Knee brace
|
Q235 Angle Steel
|
||
|
Tie Rod
|
Q235 Circular Steel Pipe
|
||
|
Brace
|
Q235 Round Bar
|
||
|
Vertical&Horizontal Support
|
Q235 Angle Steel,Round Bar or Steel Pipe
|
||
|
Maintenance system |
Roof Panel
|
EPS/Glass Fiber/Rockwool/PU Sandwich Panel or Steel Sheet
|
|
|
Wall Panel
|
Sandwich Panel /Corrugated Steel Sheet
|
||
|
Asscessories
|
Window
|
Aluminiumn Alloy/PVC/Sandwich Panel
|
|
|
Door
|
Sliding Sandwich Panel door/ Rooling Metal door
|
||
|
Rainspout
|
PVC
|
||
|
Live load on roof
|
50kg/Sqm(According to your request)
|
||
|
Wind Resistance Grade
|
12 Grades
|
||
|
Earthquake-resistance
|
8 Grades
|
||
|
Structure Usage
|
UP to 50 years
|
||
|
Temperature
|
Suitable temperature:-50℃~+50℃
|
||
|
Options
|
Vast array of colors and textures availiable
|
||
|
Paint Options
|
Alkyd paiting,two primary painting,one finish painting(gray, red, blue,epoxy zinc etc) or Galvanized
|
||

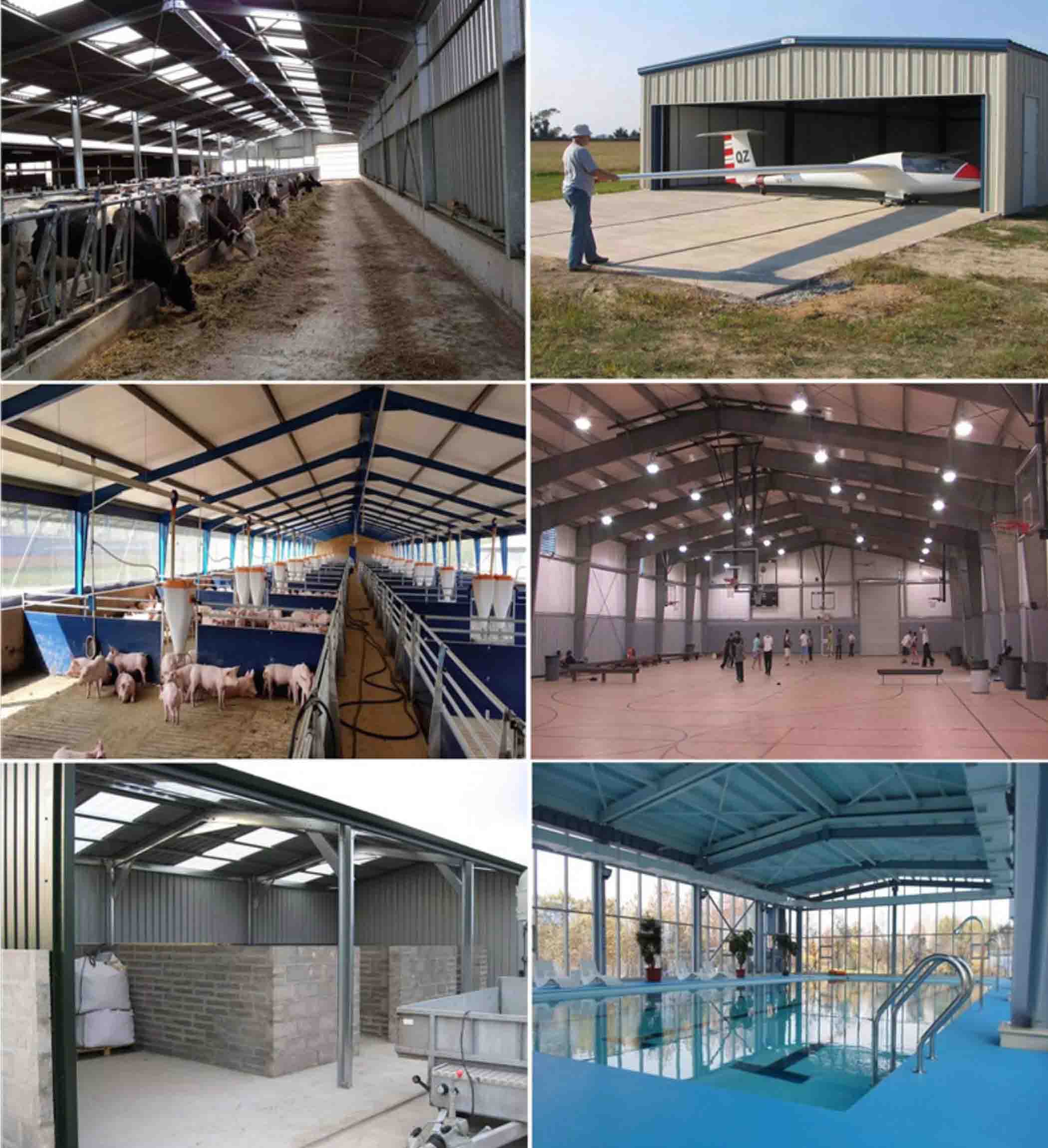

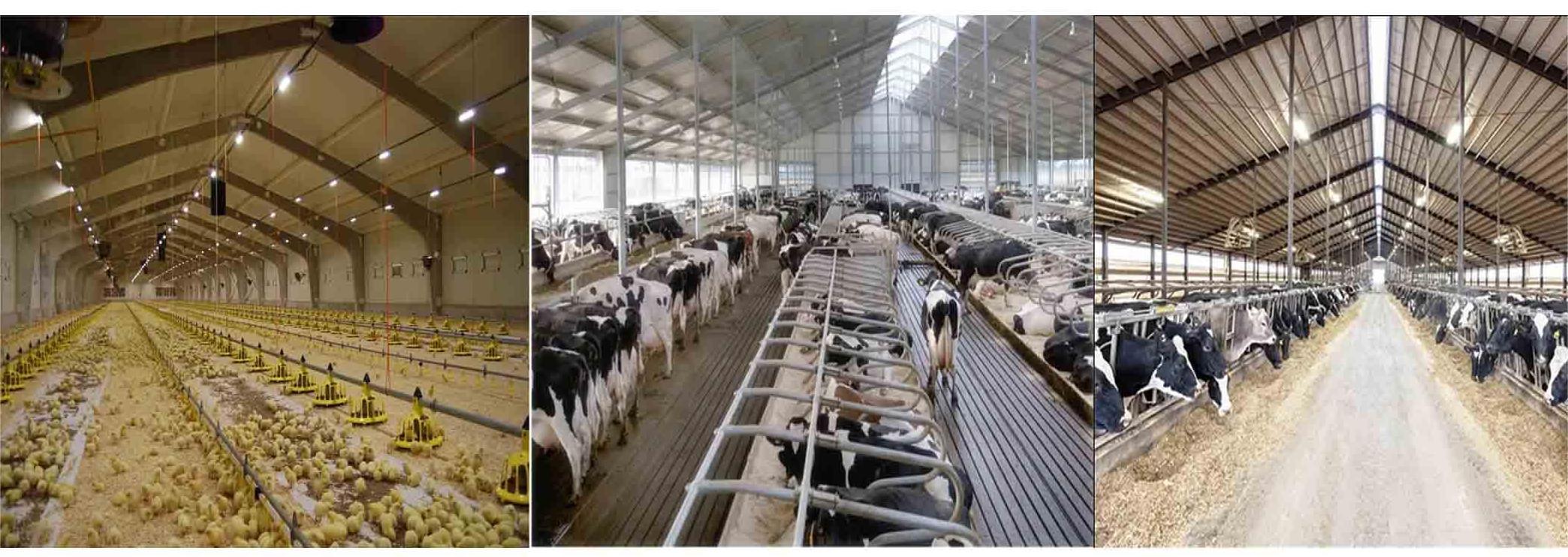

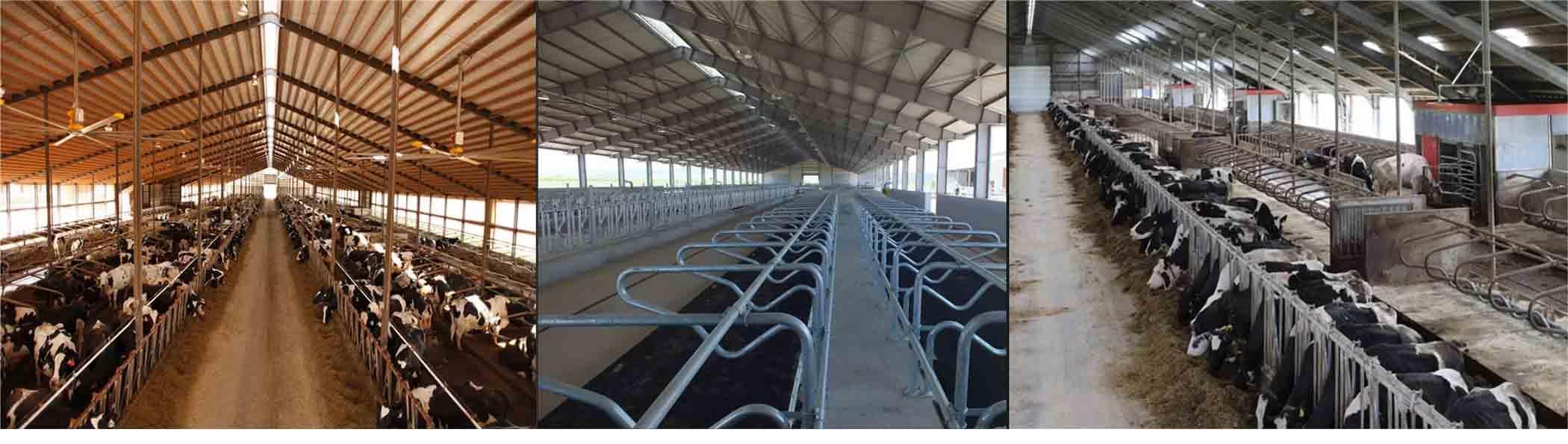

Product Display
Characteristics
(1). Free to design architectural drawings for you;
(2). Features: Fast and flexible to assemble, safe, thermal and noise insulation, water proof and fire prevention;
(3). Cost-effective: Fast and easy installation greatly shorten the construction time which reduce the costs;
(4). Durability: The whole structure is easy in maintenance, which can be used for more than 50 years.
(5). Perfect design: Perfect design completely avoids leaks and water seepage. Meanwhile, it's also in line with the national level of fire prevention.
(6). Carrying capacity: can resists the impact of strong wind and seismic performance and bears heavy snow loads
Video Show
Customized Product Process
Professional Design Ability
Our company develops a BIM collaboration platform based on "enterprise cloud", and the design is completed on the platform with "all staff, all majors, and the whole process". The construction process is carried out on our "fabricated intelligent construction platform" with independent intellectual property rights. The platform can realize the joint participation and collaborative management of all parties involved in the construction. Fully meet the "intelligent project management platform" requirements of integrated buildings. Completed the development of "Box House Design Generation Toolset Software" and obtained three software copyrights. The software functions are comprehensive and have high operating efficiency, including "4+1" main functions and 15 special functions. Through the software application, the difficulties of collaborative work in the links of design, production, order dismantling, and logistics have been solved, and the overall implementation efficiency and cross-departmental collaboration efficiency of the box-type housing project have been effectively improved.
The material database is established through the BIM model, combined with the comprehensive management platform, the material procurement plan is formulated according to the construction process and the progress of the project plan, and the material consumption types at each stage of the construction are quickly and accurately extracted, and the basic data support of the BIM model is used as the material procurement and management. Control basis. Material procurement, management and real-name management of workers are realized through the China Construction Cloud Construction online shopping and centralized procurement platform.
Manufacturing Capacity
Light steel structure products are prefabricated in advance, speeding up the production cycle, helping you to undertake projects faster and complete house construction.
It is a form of using advanced and applicable technology, craftsmanship and equipment to pre-manufacture various components of the building by professional factories before construction, and then transport them to the construction site for assembly. Repeated mass production in the factory is conducive to speeding up the construction progress, shortening the construction period, improving the efficiency and quality of the production of components, simplifying the construction site, and achieving civilized construction.
Packaging and Shipping
Inland Delivery
The product specifications and packaging specifications all meet the international container size requirements, and long-distance transportation is very convenient.
Delivery By Sea
The modular prefabricated integrated container house product itself has standard size requirements for shipping containers. Local transportation: In order to save transportation costs, the delivery of modular box-type mobile homes can also be packaged with a standard 20' container size. When hoisting on-site, use a forklift with a size of 85mm*260mm, and a single package can be used with a forklift shovel. For transportation, four connected into a standard 20' container must be ceiling loaded and unloaded.
All In One Package
One flat pack container house consists of one roof, one floor, four corner posts, all wall panels including doors & windows panels, and all components associated in the room, which are prefabricated, packed and shipped out together and makes up one container house. For multiple components, increase the number as required.
Professional Transport
All accessories will be shipped in containers and the main frame will be shipped by sea. Shipping information includes regular product information, testing information required by customer orders, etc. Please consult customer service staff for details.
